Kulti-Dan
Kulti-Dan
2.20 - 7.00 M
2.40 - 3.00 M
25-110 HP
370 - 1,013 KG
22 - 70 PCS
flip-to-se-table

rotate device to see table.

Model Specifications No. of tines per section, pcs Weight, kg Power requirement, HP
2.20 Rigid 22 370 25 - 35
2.80 Rigid 28 423 35 - 45

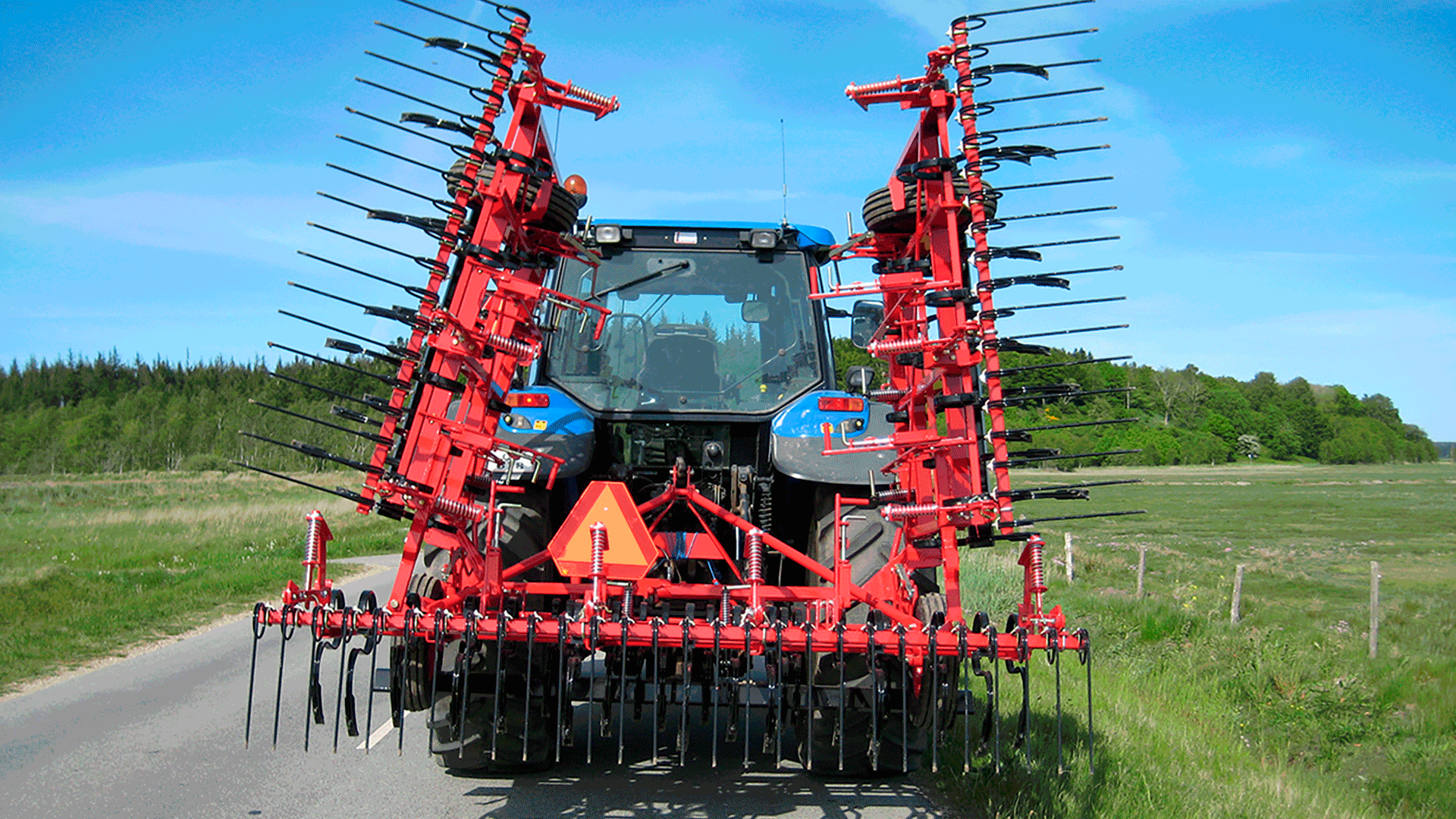

3.40 Manual folding 6 + 22 + 6 (34) 556 45 - 55
4.00 Manual folding 6 + 28 + 6 (40) 609 50 - 60
4.60 Hydraulic folding 12 + 22 + 12 (46) 761 60 - 75
5.20 Hydraulic folding 12 + 28 + 12 (52) 819 70 - 90
5.80 Hydraulic folding 18 + 22 + 18 (58) 897 80 - 90
6.40  Hydraulic folding 18 + 28 + 18 (64) 955 80 - 100
7.00 Hydraulic folding 21 + 28 + 21 (70) 1,013 90 - 110

Levelling board
Levelling board
Long finger after-harrow
Long finger after-harrow

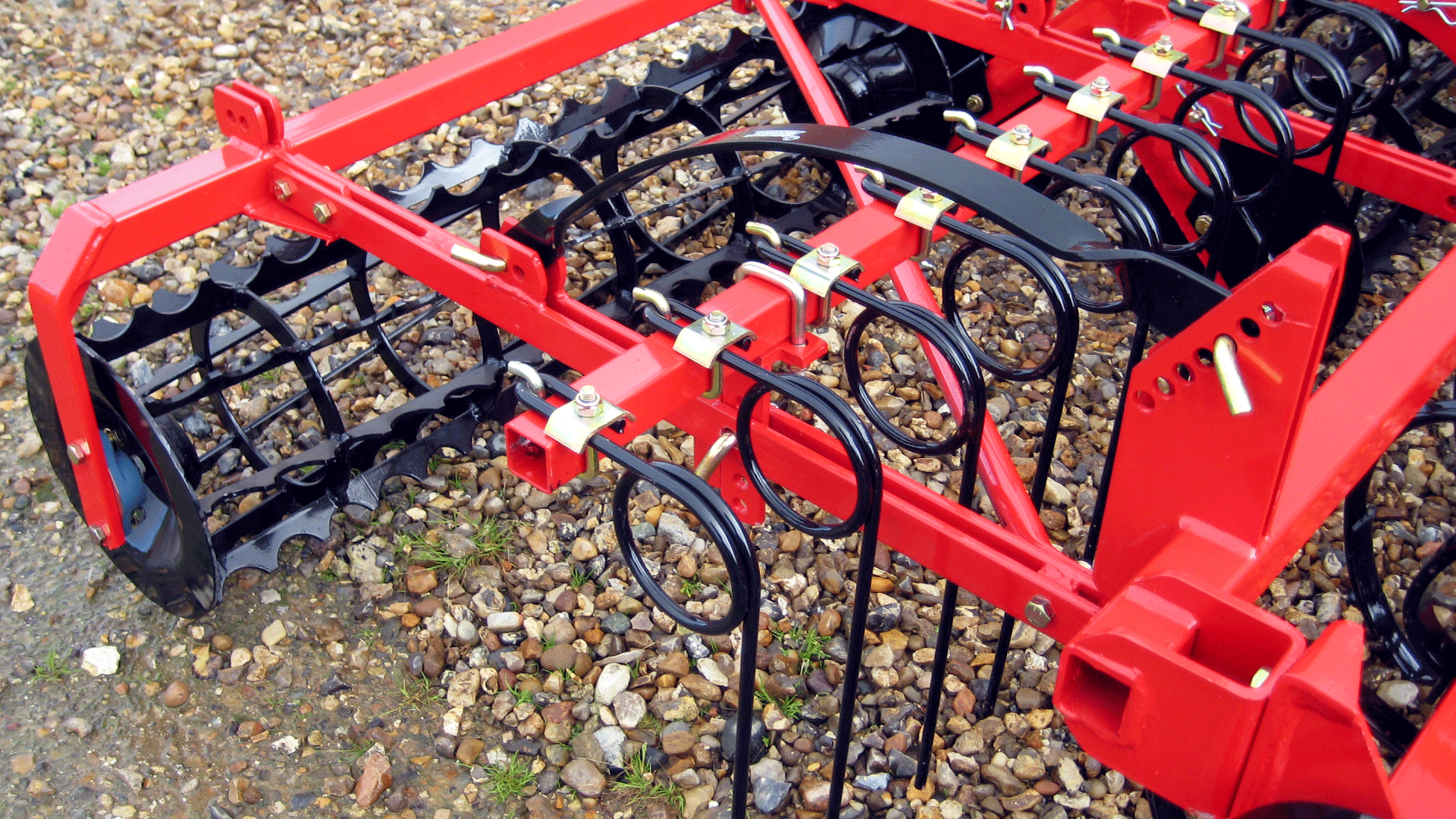

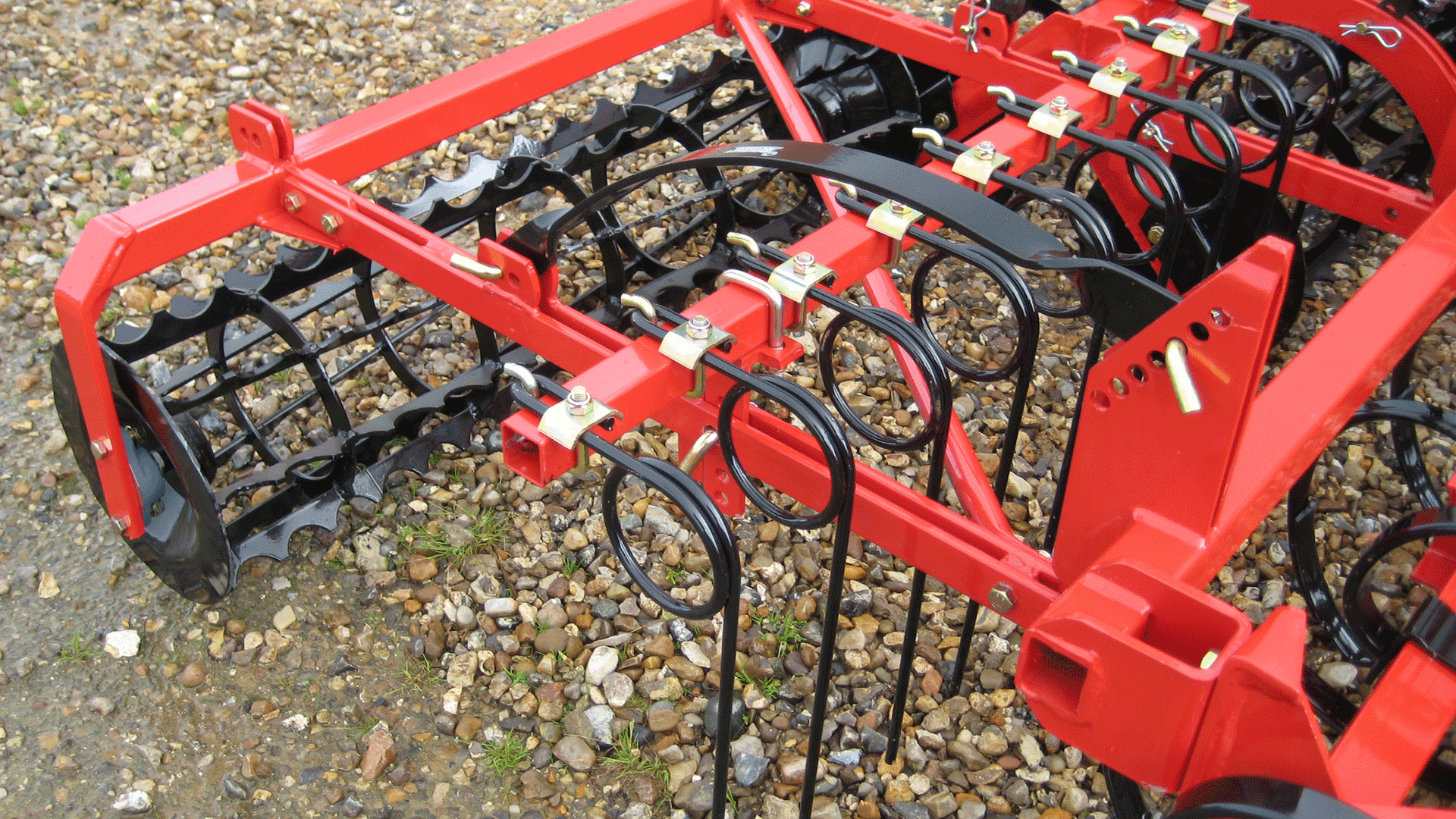

Combi after-harrow
Combi after-harrow

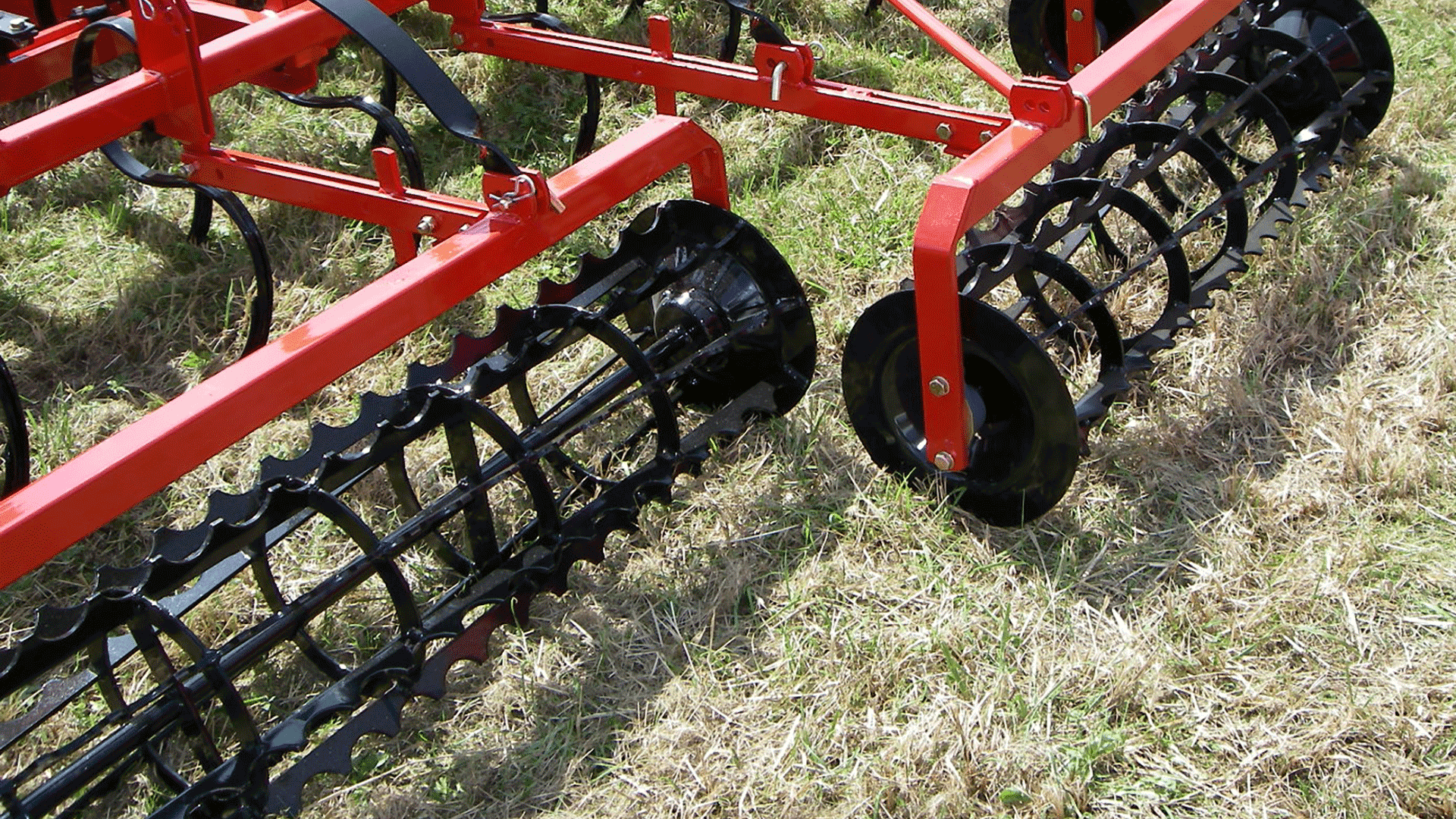

Rotor crumbler
Rotor crumbler
Extra equipment Specification
LED lights Lights : set with wire and socket
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
German
English
French
Hungarian
Italian
Latvian
Swedish

Images

KULTI-DAN

EFFicient harrowing on all types of soil

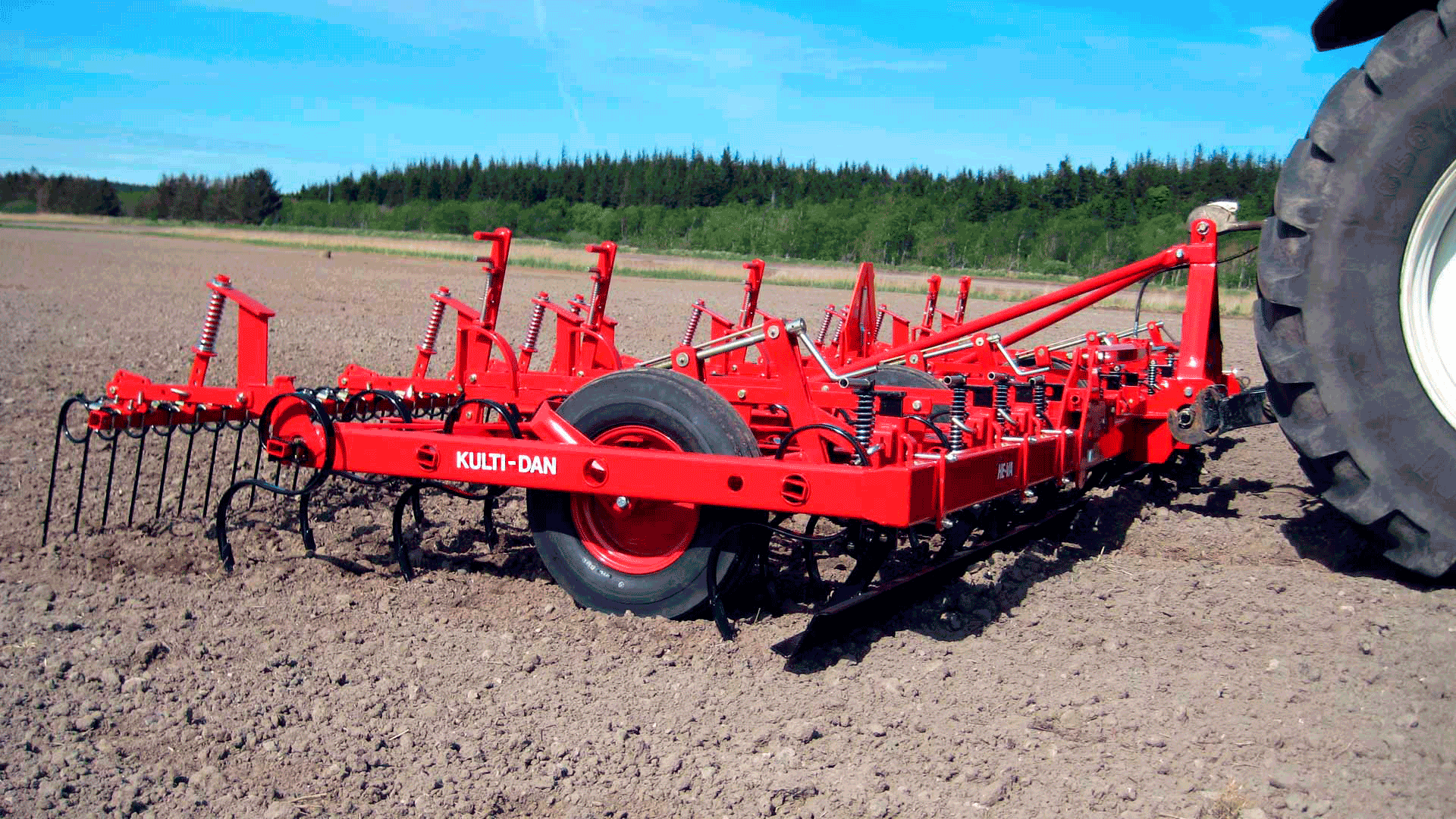

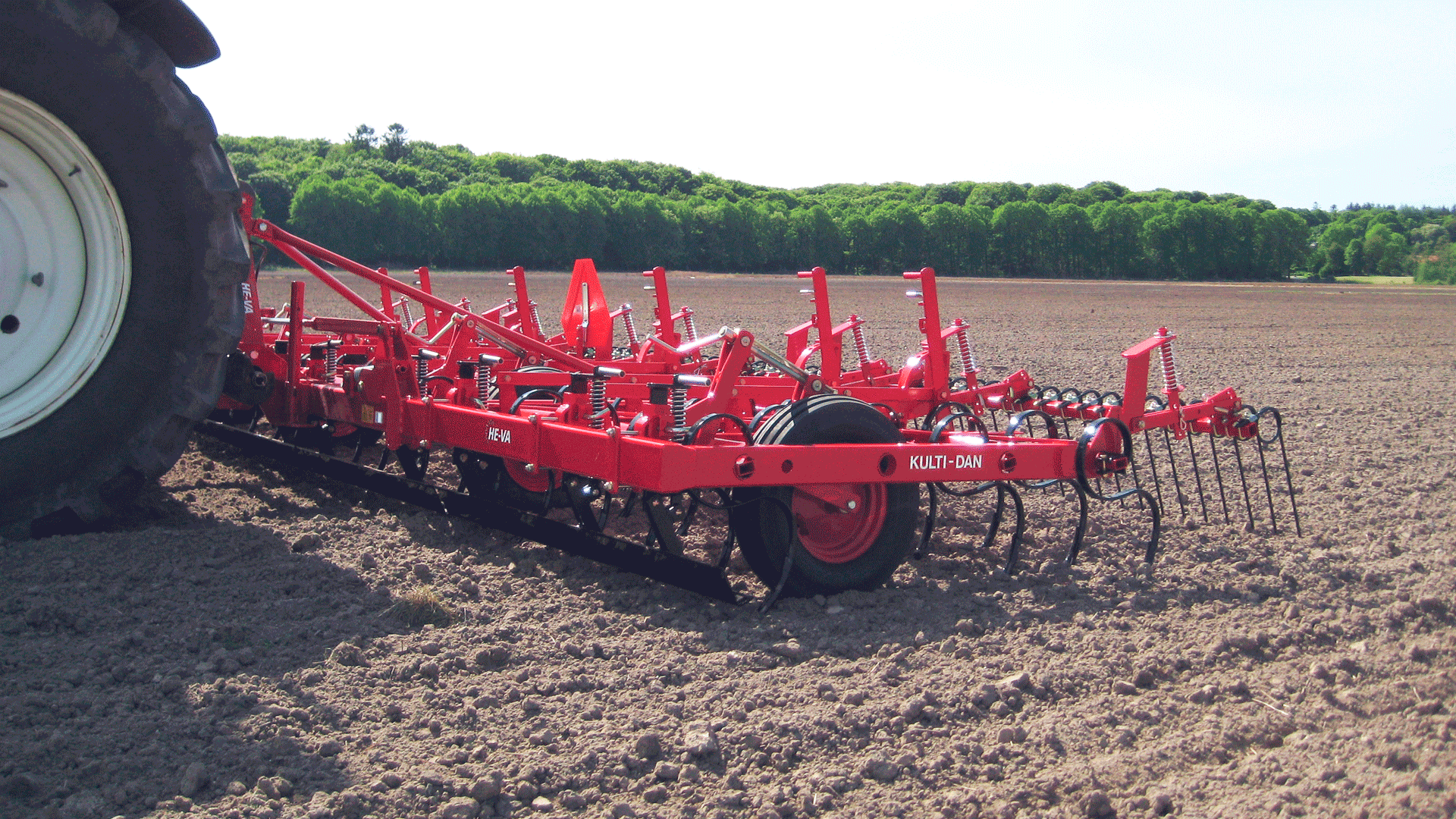

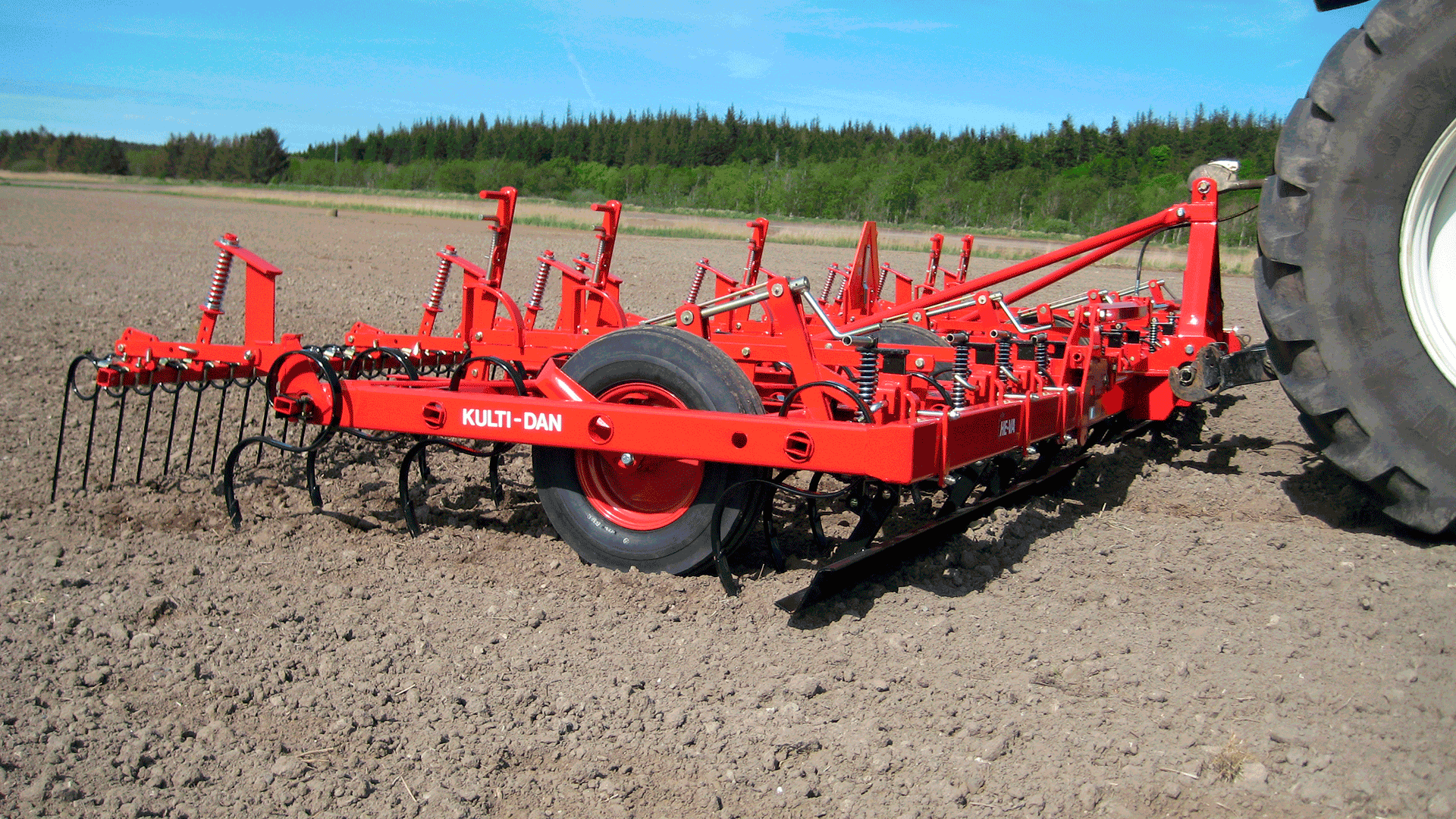

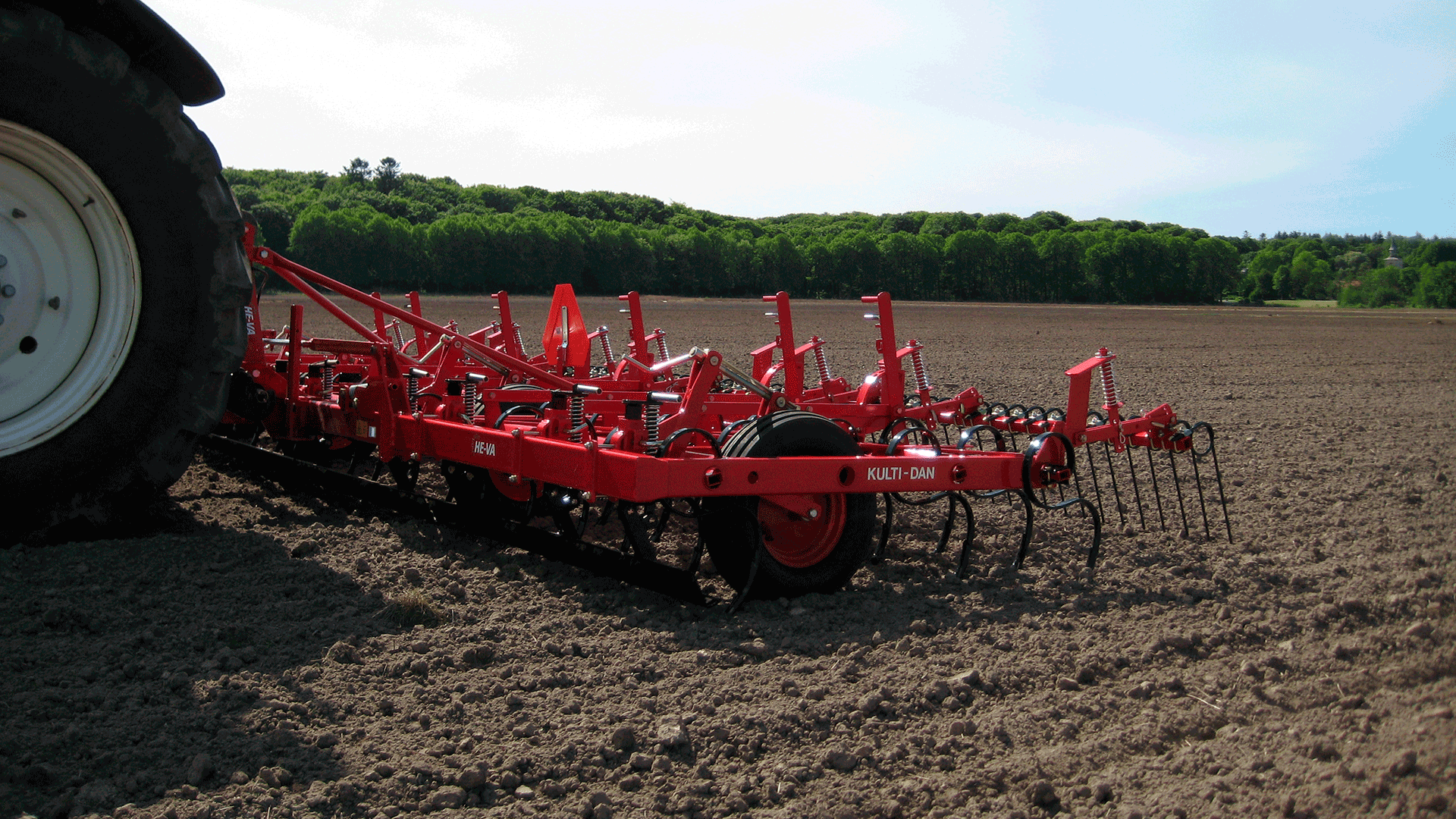

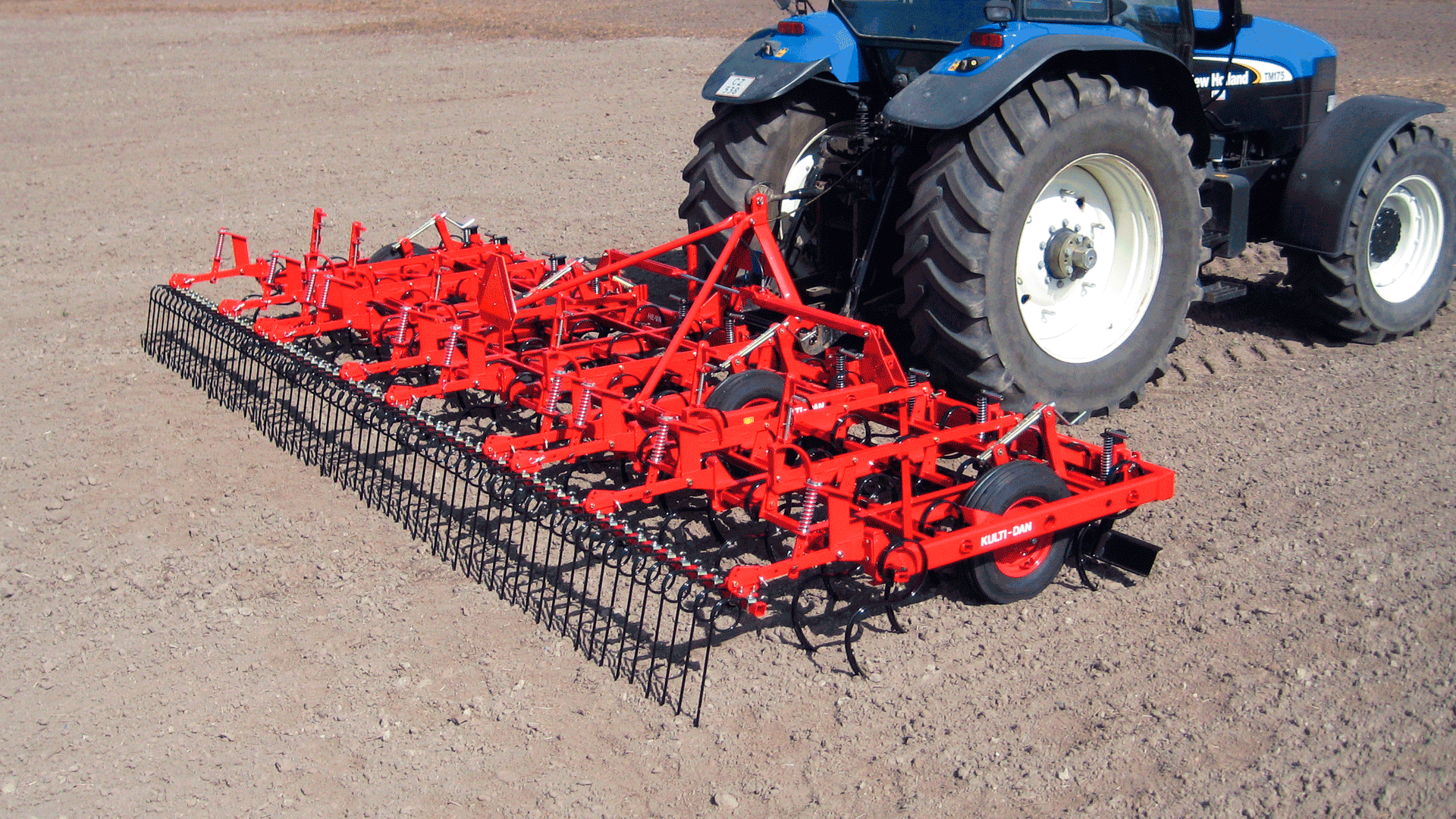

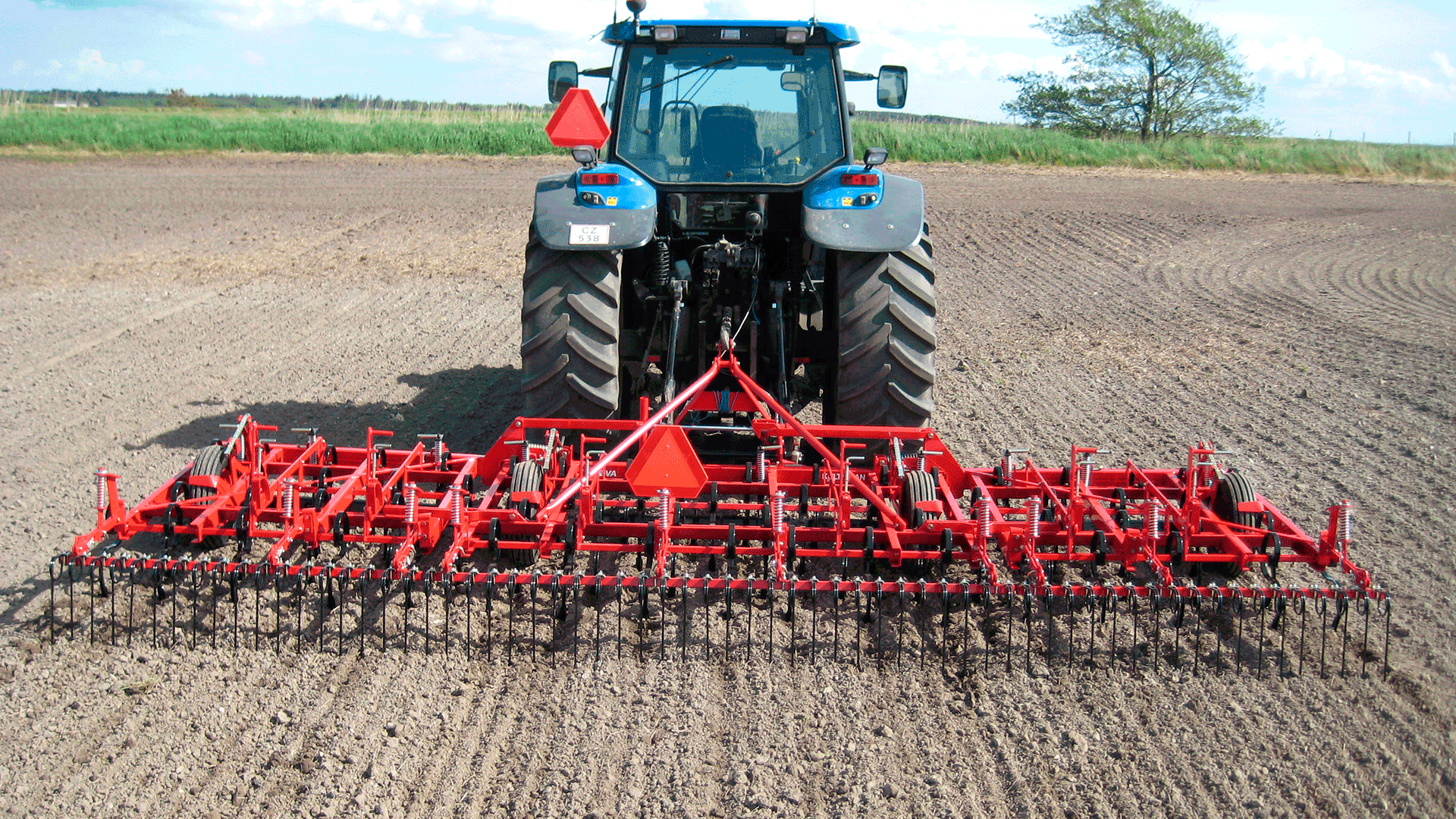

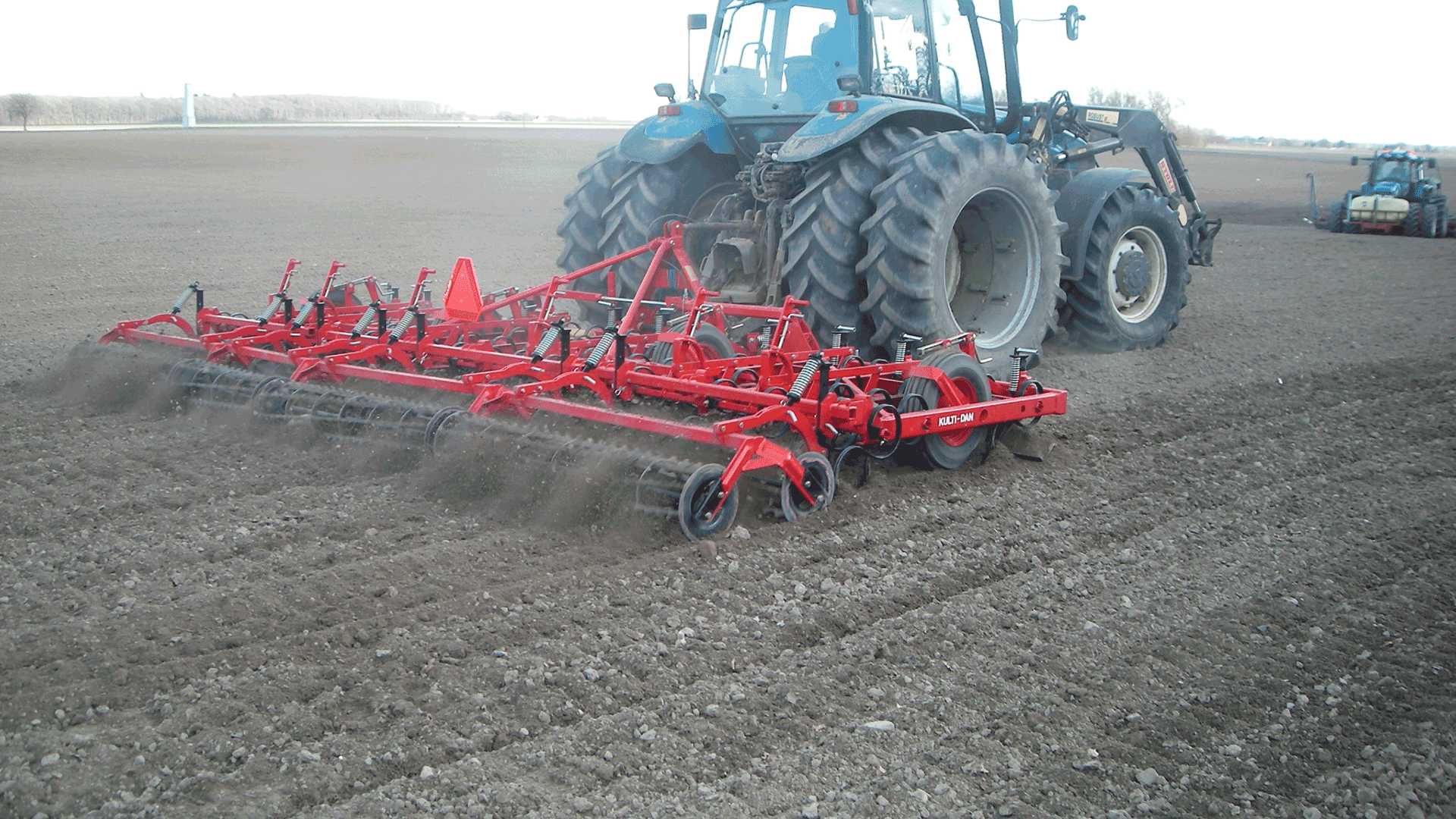

Kulti-Dan seedbed harrow is a flexible three-point mounted harrow that can be adjusted to fit the individual farmer's needs and tractor through a wide selection of extra equipment.

The Kulti-Dan seedbed harrow contains 4 rows of tines - all of which can be adjusted in 4 different angles depending on soil type and the specific harrowing job. This feature makes the Kulti-Dan harrow an efficient tool for even the hardest soil types.

HE-VA Kulti-Dan-seedbed harrow

The large wheels ensure an accurate depth and the adjustable wheel scrapers guarantee an unproblematic operation in the field.

Build your own harrow

With a wide variety of extra equipment

Kulti-Dan can be built to match every farm and soil type with extra equipment such as a levelling bar that efficiently levels the field, the long finger after-harrow that levels the tine tracks and e.g. the combi-afterharrow that guarantees a uniform, perfect and even seedbed for e.g. beets. See the wide variety of extra equipment in the top folders.
