Front-Packer
Front-Packer
1.50 - 6.00 M
1.70 - 4.15 M
15 - 55 HP
680 - 2,845 KG
flip-to-se-table

rotate device to see table.

Model No. of rings, pcs Ring diameter, mm Weight, kg Power requirement, hp
1.50 m rigid 10 700 680 15
1.50 m rigid 10 800 890 15
1.65 m rigid 10 900 1,140 15
2.60 m rigid 16 700 866 20
2.60 m rigid 16 800 1,230 20
2.60 m rigid 14 900 1,685 20
3.00 m rigid 18 700 980 25
3.00 m rigid 18 800 1,420 25
3.00 m rigid 17 900 1,940 25
3.00 m rigid 18 700/800/700  1,160 25
3.00 m rigid 17 800/900/800 1,610 25
3.50 m rigid 22 700 1,160 30
3.50 m rigid 22 800 1,660 30
3.50 m rigid 19 900 2,120 30
3.50 m rigid 22 700/800/700 1,340 30
3.50 m rigid 19 800/900/800 1,750 30
4.00 m rigid 24 700 1,280 35
4.00 m rigid 24 800 1,840 35
4.00 m rigid 23 900 2,415 35
4.00 m rigid 24 700/800/700 1,460 35
4.00 m rigid 23 800/900/800 2,030 35
4.00 m hydraulic 24 700 1,430 35
4.00 m hydraulic 24 800 1,990 35
4.00 m hydraulic 21 900 2,580 35
4.00 m hydraulic 24 700/800/700 1,610 35
4.00 m hydraulic 21 800/900/800 2,180 35
5.00 m hydraulic 30 700 1,655 45
5.00 m hydraulic 30 800 2,350 45
5.00 m hydraulic 30 700/800/700 1,835 45
6.00 m hydraulic 36 700 1,875 55
6.00 m hydraulic 36 800 2,695 55
6.00 m hydraulic 36 700/800/700 2,095 55

Front-Packer Twin

Model No. of rings, pcs Ring diameter, mm Weight, kg Power requirement, hk
1.50 m rigid 15 700 - 700 975 15
1.50 m rigid 15 800 - 800 1,185 20
1.65 m rigid 13 900 - 900 1,590 20
2.60 m rigid 21 700 - 700 1,380 20
2.60 m rigid 21 800 - 800 1,740 25
3.00 m rigid 24 700 - 700 1,570 25
3.00 m rigid 24 800 - 800 2,010 30
3.50 m rigid 30 700 - 700 1,610 35
3.50 m rigid 30 800 - 800 2,290 40
3.50 m hydraulic 29 700 - 700 1,780 35
3.50 m hydraulic 29 800 - 800 2,460 40
4.00 m rigid 34 700 - 700 1,890 40
4.00 m rigid 34 800 - 800 2,665 45
4.00 m hydraulic 32 700 - 700 2,070 40
4.00 m hydraulic 32 800 - 800 2,845 45

Front-Press

Model No. of wheels, pcs Weight, kg Power requirement, hp
1.50 m rigid 4 470 20
4.00 m rigid 1+4+1 705 35
4.00 m hydraulic 1+4+1 795 35

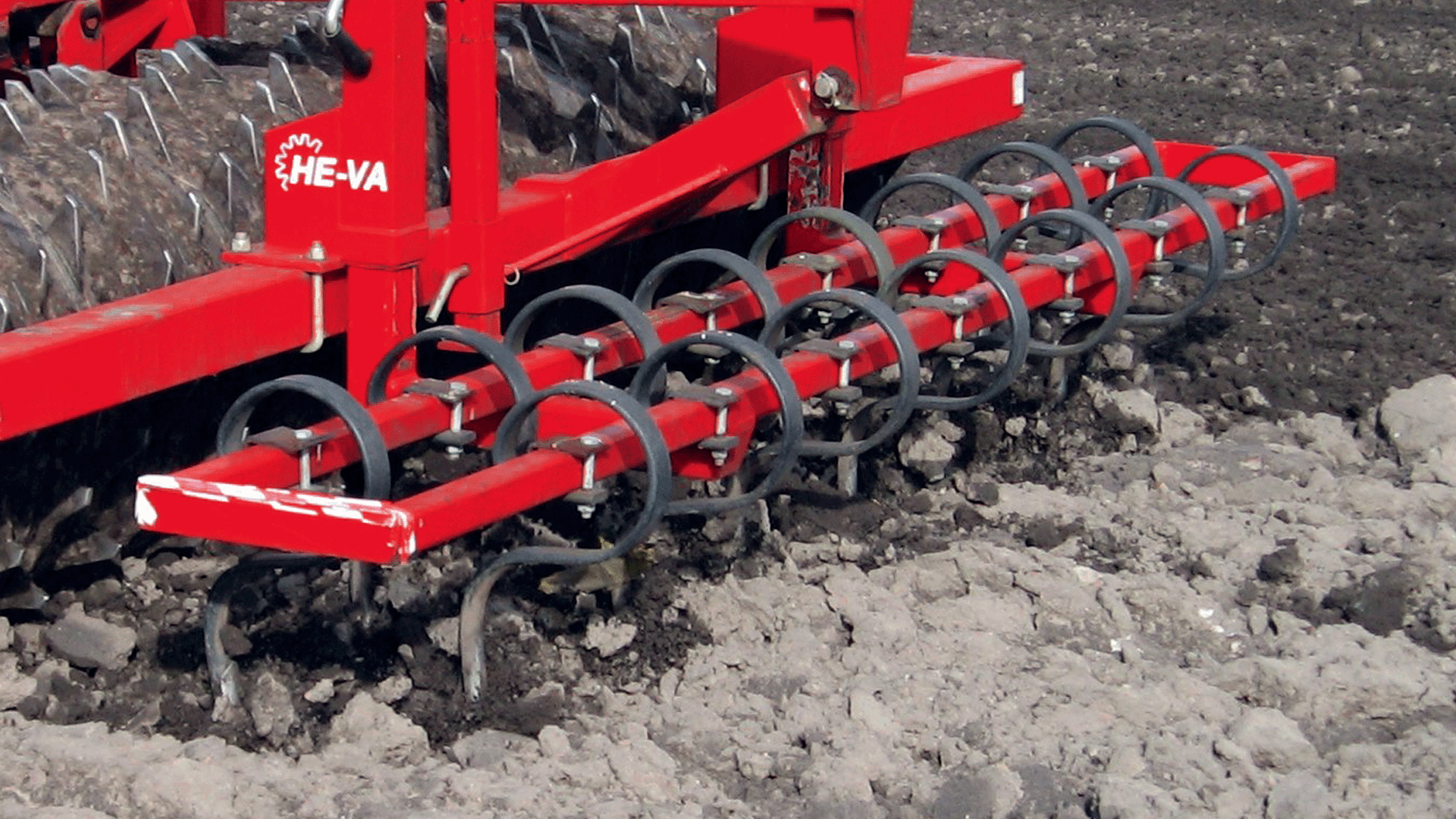

Front-harrow, 2-row
Front-harrow, 2-row

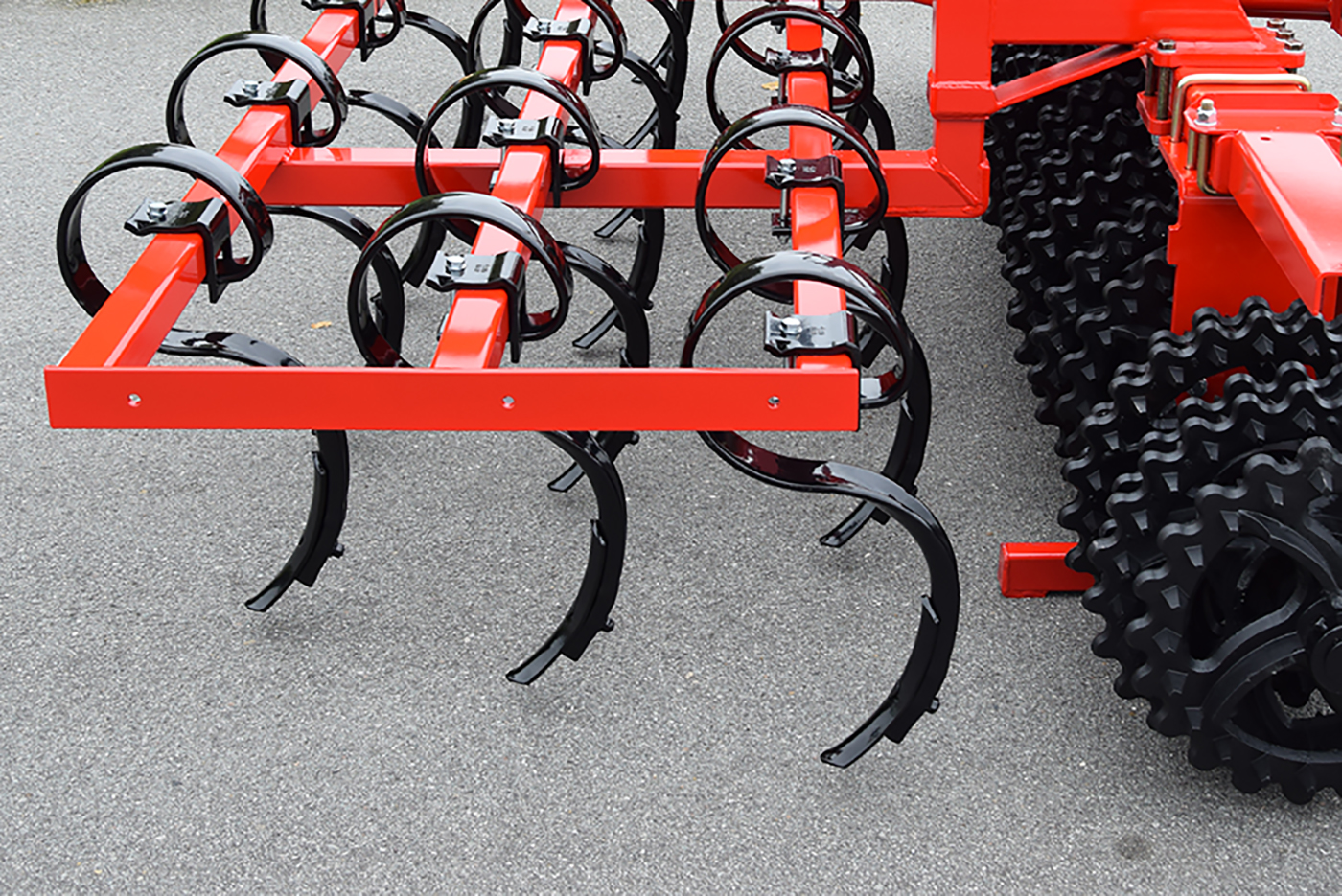

Front-harrow, 3-row
Front-harrow, 3-row
Spring-Board
Spring-Board
Transverse locking system
Transverse locking system
Extra equipment Specification
LED lights Lights : set with wire and socket
Stone box set Gathering of rocks : 2 pcs
Double Three-Point linkage Front- & rear mounting :
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
German
English
French
Czech
Finnish
Polish
Serbian
Swedish

Front-Packer

Front-press for efficient consolidation regardless of soil type

With the HE-VA Front-Packer, you will be able to combine consolidation with a harrow and a seeder making it possible to till at the same time as seeding in only one pass.

The 150 - 165 mm spacing between the rings ensures that there is friable soil left for the drill to work in. The Front-Packer can be equipped with 3 different ring sizes and depending on the ring size you choose, they all have a unique design that prevents the rings from sinking in too much and still allowing for the aggressive 30-degree edge to do its work in heavier soil without risking deep tractor tracks.

This unique shoulder design offers superb cutting with its 30-degree edge while at the same time controlling the penetration on light soil types with the shoulder at the base of the cutting edge. This improves consolidation and keeps the ring turning on lighter soils without compromising the aggressive action needed for heavier land.

All Front-Packers incorporate a cleaning chain between the rings to ensure that the rings keep working in wet and sticky conditions.



Front-Packer Twin

Front-Packer also comes as a Twin-model with 2 staggered rows of Ø700/800 mm rings to achieve a more uniform consolidation on variating soil types.



Front-Press

In the HE-VA Front-Packer series is also the Front-Press.

The flexible soil packer

Front-Packer becomes an extension of the front of the tractor when attached and hence, the Front-Packer is trailed instead of pushed and thereby smoothly follows the nose of the tractor steering even at high speed. The steering rollers have a self-centring effect, which helps prevent it from swaying around during transport.

Besides being a flexible soil packer, the wide variety of extra equipment offered, makes it possible to adjust the Front-Packer to individual needs.

See the wide variety of extra equipment in the top folders.
